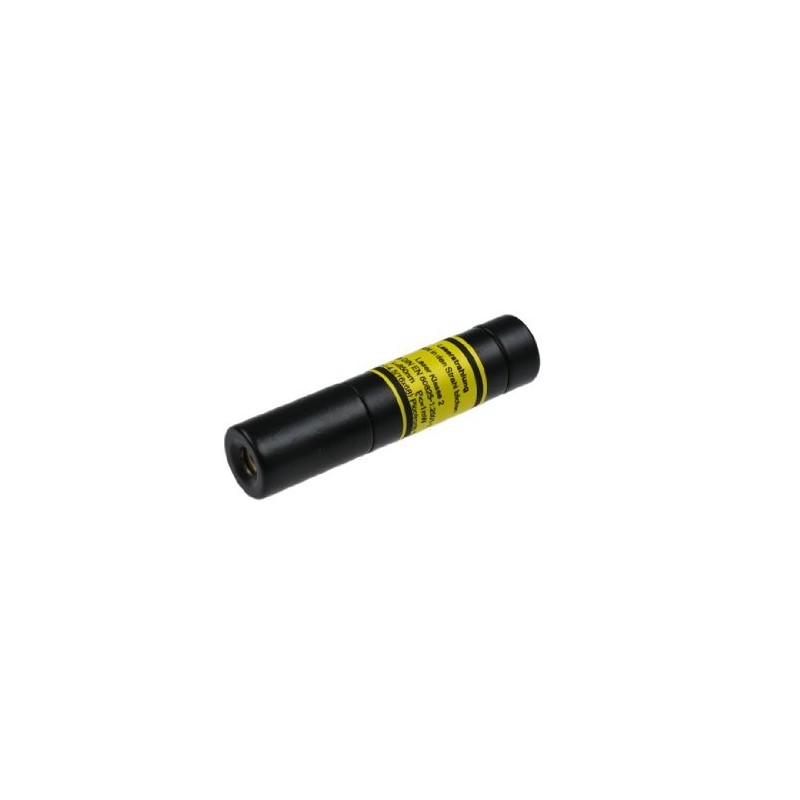

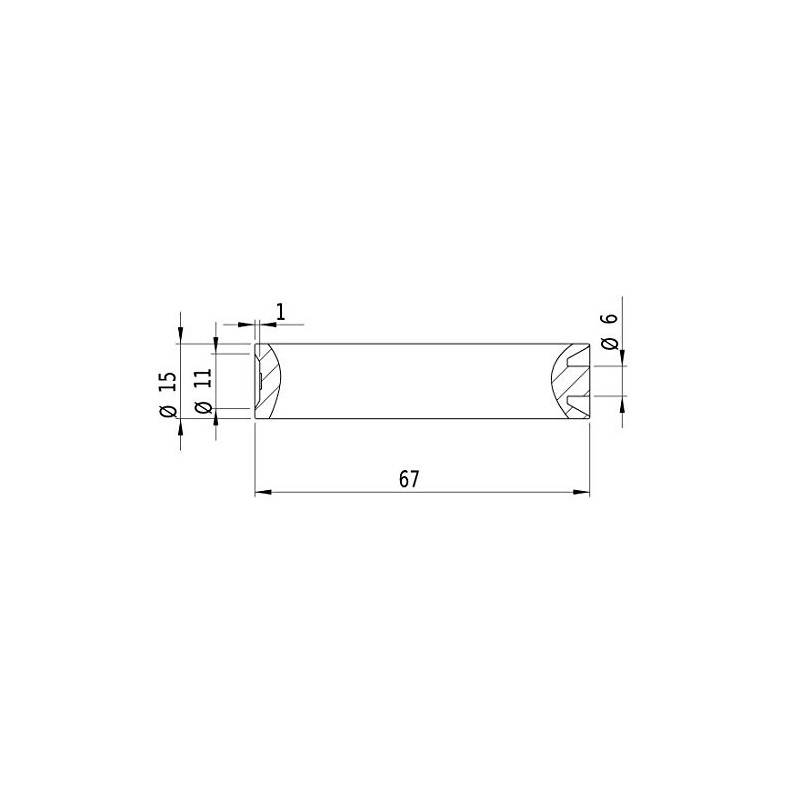

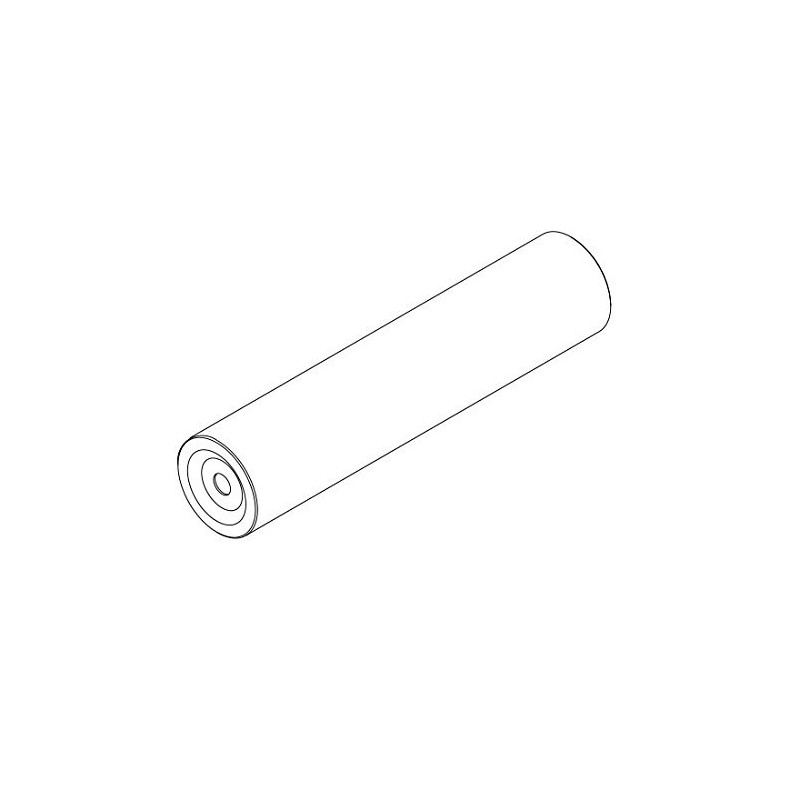

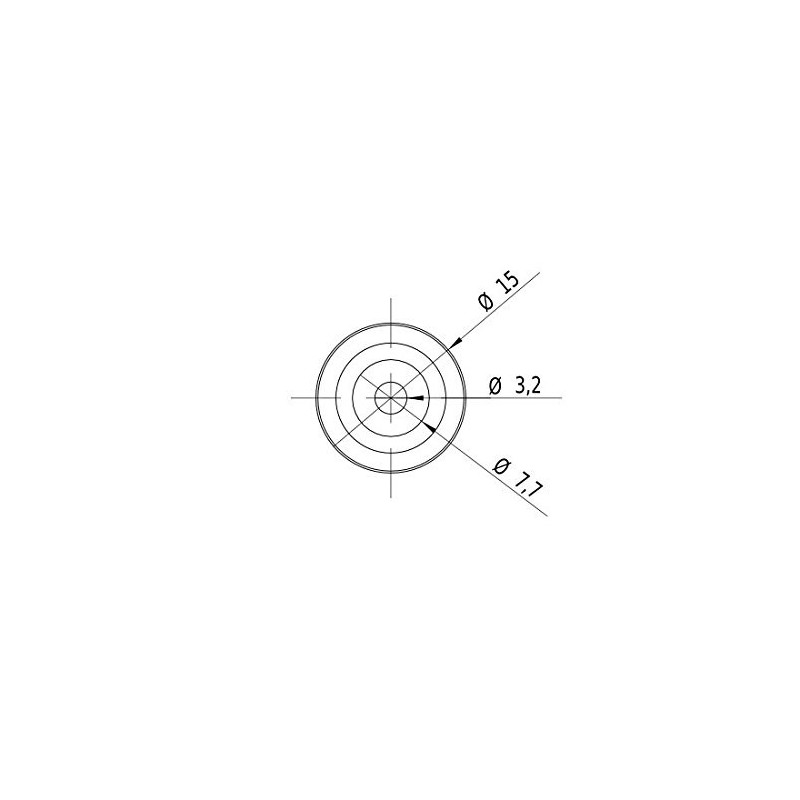

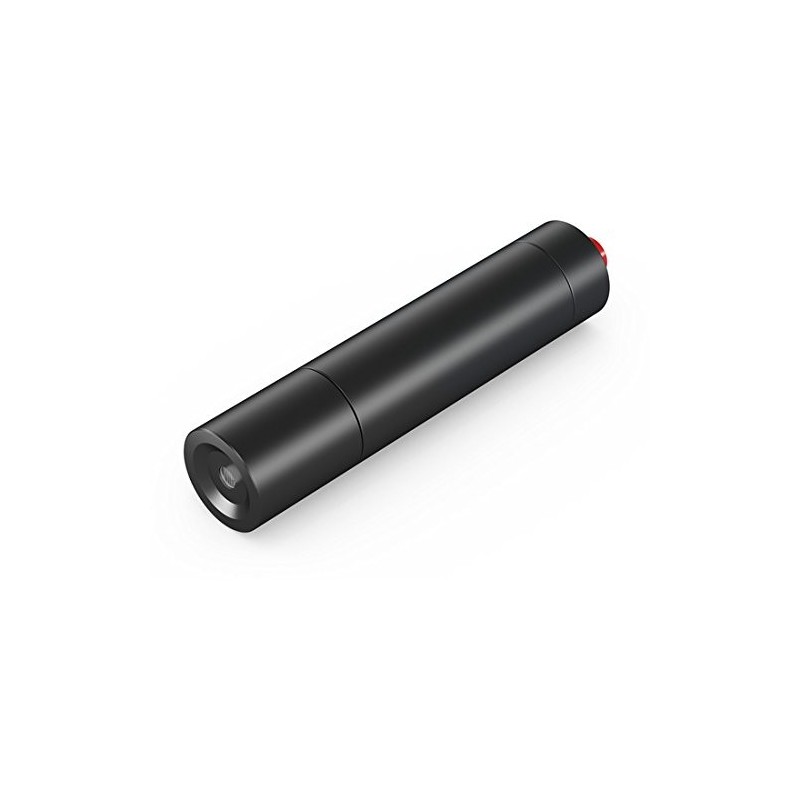

The type LFD650-1-4.5(15x68) is a dot laser that projects a red laser dot. The laser module emits light of the wavelength of 650nm. The module contains two button cells that are included. Therefore, wireless operation is possible over several hours. This diode laser module measures 15mm x 68mm. Accordingly, it is a small and effective laser source. Therefore, the module can be used in different applications and also in room light. The optimal operation range of the laser is 10m. This positioning laser is an universal tool for hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. Typical operation areas are low cost applications. This module is laser class 2. Please note: Caused by the product design deviations between optical axis and mechincal axis are possible. This laser is optimized for room light and projects a bright red laser dot. The visibility can be reduced by bright ambient light or sunlight.
Parámetros principales Longitud de onda: 650nm Potencia óptica de diodos: 1mW Tensión de servicio: 3 - 4.5V DC Corriente de servicio: 10 - 30, tipo 20mA Temperatura de servicio: -20°C - 40°C Temperatura de almacenamiento: -40°C - 80°C

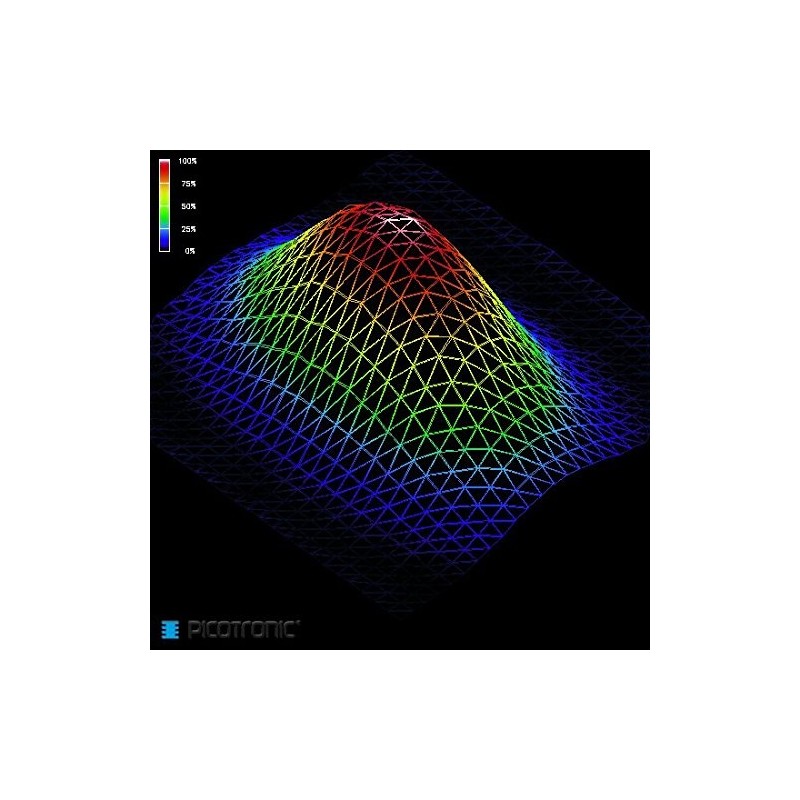

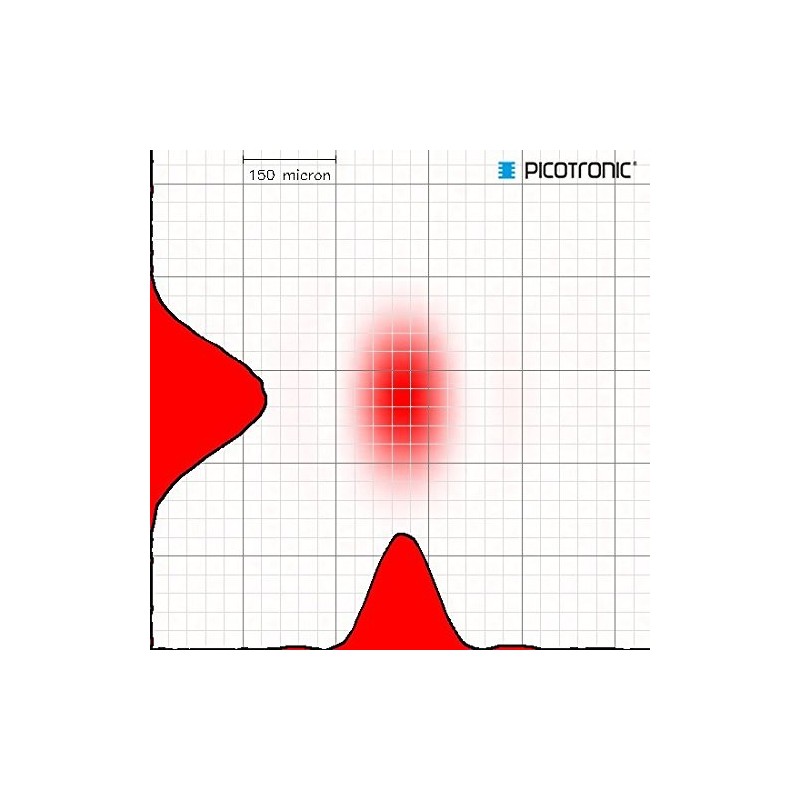

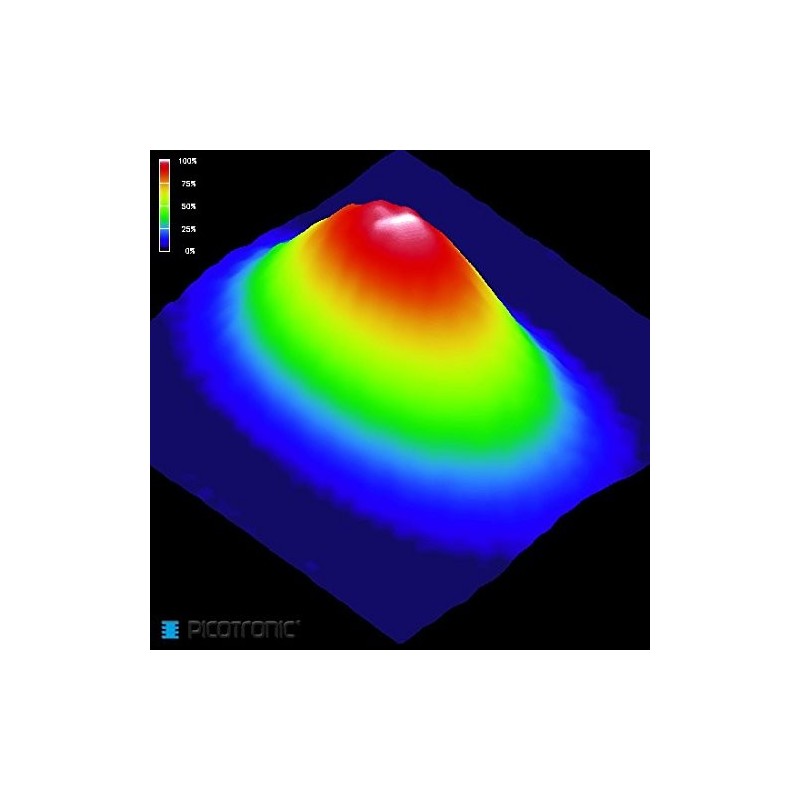

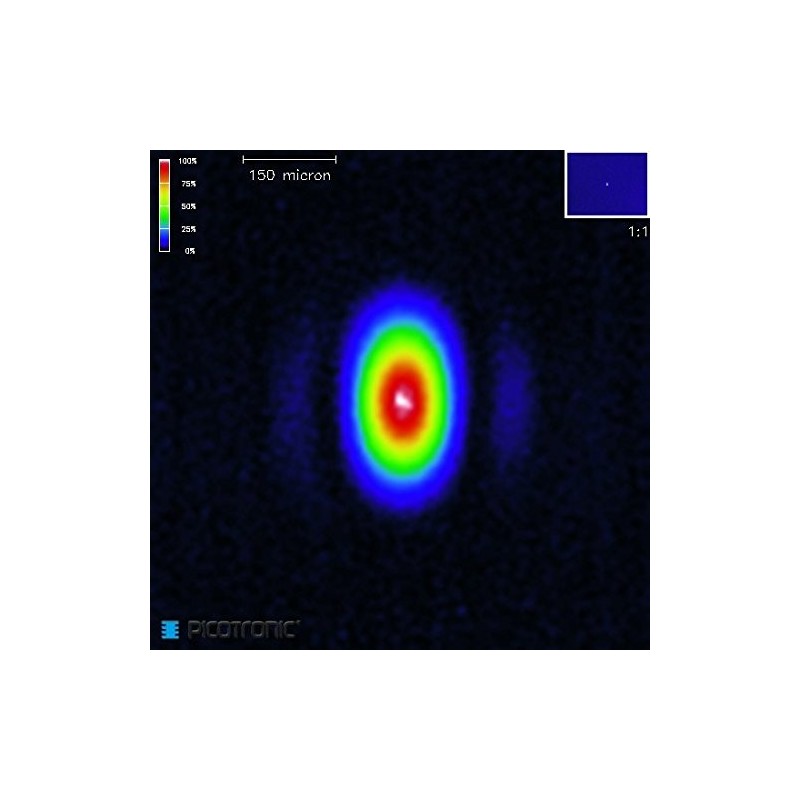

Parámetros ópticos Forma del haz: Punto Láser clase: 2 Divergencia: H - 1.0mrad Diámetro de haz: 3mm Tamaño de punto: <4..6mm@5m Distancia de trabajo: 10m Óptica: Lente acrílica Tecnología láser: Diodo Foco:
Especificaciones técnicas Vida útil: >3000h RoHS: sí
Parámetros eléctricos Potencial de la carcasa: VDD(+) Batería: 2 x LR44
